Statsionaarne betooni tootmistehas

& nbsp;Stationary concrete batching plant

& nbsp;

Statsionaarse betoonitehase tutvustus:

& nbsp;

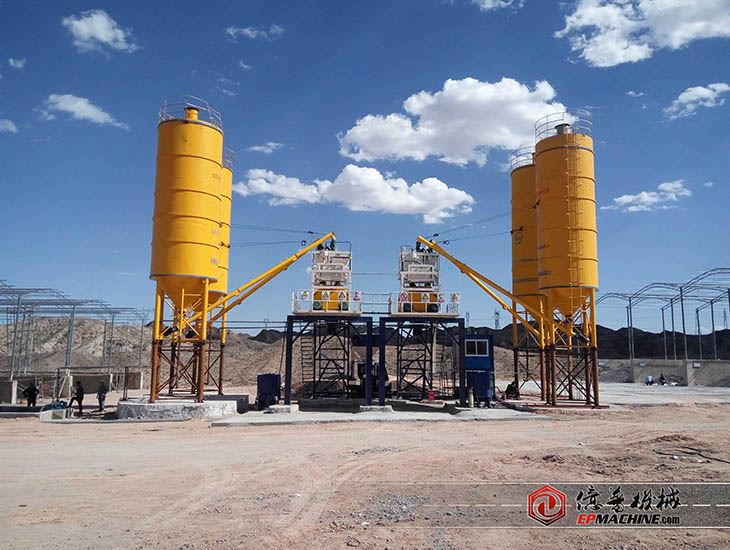

The HZS50 stationary concrete batching plant & nbsp;produced by EP machinery & nbsp;uses bucket feeding method, and is equipped with feeding, batching, mixing, electrical control and steel structural components to form a fully automatic control concrete batch plant.

The HZS50 stationary concrete batching plant & nbsp;occupies less capital than the HZS60 concrete batch plant, occupies a small area, and has less parts. The theoretical productivity is 50 cubic meters per hour. It is the ideal equipment for bridge construction, road engineering, construction sites, and construction companies.

HZS-seeria statsionaarne betoonitehased & nbsp; on EP & nbsp peamine toode; Company. See on kohustuslik ja suure tõhususega - seade. See võib toota erinevat tüüpi betooni, näiteks plastist, kuiva ja kõva betooni. Ja seda kasutatakse laialdaselt eeltöötlemistehastes, mis on ideaalne seade kaubandusliku betooni tootmiseks.

& nbsp;

& nbsp;

Statsionaarse betoonitehase põhijooned:

& nbsp;

1.The mixer & nbsp;and the aggregate lifting mechanism use a JS1000 twin shaft forced mixer, which has strong mixing capacity, high efficiency and good quality!

& nbsp;

& nbsp; & nbsp;2. Whole stationary concrete batching plant adopt a combined structure with modular units, which makes the installation and relocation of the entire station very convenient.

& nbsp;

3. PLD1600 batching machine is used for the batching of aggregates, and the measurement accuracy is high.

& nbsp;

4, Cement, water, fly ash and liquid admixture ingredients are electronically weighed, simple and practical, and the accuracy of the ingredients is high.

& nbsp;

5. The water supply system uses the principle of siphon water pump pressurization, which can speed up the water flow and spray evenly.

& nbsp;

& nbsp;6. The powder is measured by electronic scale, with high accuracy of batching.

& nbsp;

& nbsp; 7.Sobib väikestes - ehitustööplatsides, monteeritavate osade tehastes ja kaubanduslikes betoonitootmisettevõtetes

& nbsp;

& nbsp;

Main configuration list of HZS50 stationary concrete batching plant:

& nbsp;

& nbsp;

& nbsp;

& nbsp;Statsionaarse betoonitehase põhiosad:

& nbsp;

1. Aggregate batching machine

& nbsp; & nbsp; & nbsp; & nbsp; Kasutatava pakkimismasina mudel on PLD1600, 3 0 r 4 konteinerit valiku jaoks, mis koosneb söötmismehhanismist, kaalumissüsteemist, elektrilisest juhtimissüsteemist ja muudest komponentidest.

& nbsp;

The characteristic is that the feeding mechanism is arranged in the shape of & quot;products & quot;, which is fed by a belt conveyor. The weighing method is a lever plus a single sensor, and the measurement is accurate.

& nbsp;

2.Mixing system

& nbsp;

& nbsp; & nbsp; Stationary concrete batching plant its mixer adopts JS1000 twin shaft forced mixer, which can mix fluidity, dry rigidity, lightweight aggregate concrete and various types of mortar.

& nbsp;

& nbsp; & nbsp; & nbsp; & nbsp;The mixer has the advantages of reasonable design structure, good mixing quality, short mixing time, and low noise.

& nbsp;

& nbsp; & nbsp;3.Measuring system

& nbsp;

& nbsp; & nbsp; & nbsp; & nbsp;It is composed of a cement scale, a water scale, Fly ash scale and an admixture scale. It is mainly used to complete the batching process of several materials such as cement, water, and additives.

& nbsp;

& nbsp;4. Cement silo or cement feeder for option

& nbsp;

Kui varem ladustasite lahtist tsementi, soovitame tsemendi silo. See koosneb silindrist, püstikust, tuha sissevoolutorust, tolmu kogujast, materjalitaseme mõõturist ja väljalaskeuksest.

Kui kasutasite kohapeal pakitud tsementi, on meil tsemendi söötur, mis aitab kokku hoida kulusid ja on kerge üle kanda,

& nbsp;

5.Bucket elevator

& nbsp;

& nbsp; & nbsp; & nbsp; & nbsp;Efficient continuous transportation equipment with high lifting height, stable operation, small footprint, long service life, convenient disassemble and etc.

& nbsp;

6.Screw conveyor

& nbsp;

& nbsp; & nbsp; & nbsp; & nbsp; Kvaliteetsest - kvaliteetsest terastorust on hea jäikus ja topelt - sammuga terad, et vähendada materjali transportimisel kokkusurumise astet

& nbsp;

& nbsp; & nbsp; & nbsp; & nbsp; Kvaliteetne käigukast, raske - konstruktsioon, suur pöördemoment ja madal heli

& nbsp;

& nbsp; & nbsp; & nbsp; & nbsp;Optional universal ball joint for fast installation and adjustment

& nbsp;

& nbsp; & nbsp; & nbsp; & nbsp; Varustatud kõrge - kvaliteediga keskmise vedrustuse ja tagalaagritega ning hõlpsasti paigaldatav

& nbsp;

7.Sensor

& nbsp;

& nbsp; & nbsp; & nbsp; & nbsp;Accurate weighing and fast response are the first steps to achieve automatic detection and control

& nbsp;

8.Pneumatic butterfly valve

& nbsp; & nbsp;Tight seal, reliable action, simple structure, small size, light weight, high cost performance

Statsionaarse betoonitehase põhikonfiguratsioonide pildid

& nbsp;

& nbsp; Betoonisegisti ämbriga	& nbsp; Cbetoonisegisti & nbsp;production center
& nbsp;	& nbsp; & nbsp;
& nbsp; Aggregate pakkimismasin	& nbsp; Automaatne juhtimissüsteem
& nbsp; Kruvikonveier	& nbsp; Tsemendi silo
